Constructing LL(1) Parsing table, Find first and Follow
9 March, 2016
- Constructing parsing table can be done by only FIRST and FOLLOW.
- Always Use the value of FIRST and FOLLOW to complete the parsing table.
- In this We have to use the algorithm to complete the table.
- Add value under M[A,a]
- If there is empty set so move to FOLLOW value .
- In this example as we have seen to find the value of E is easy but when we move to E' it makes things little bit difficult.
- E'->+TE' and empty set.
- We find + from +TE' and for empty set we move to FOLLOW.
- Rest of the things is same.

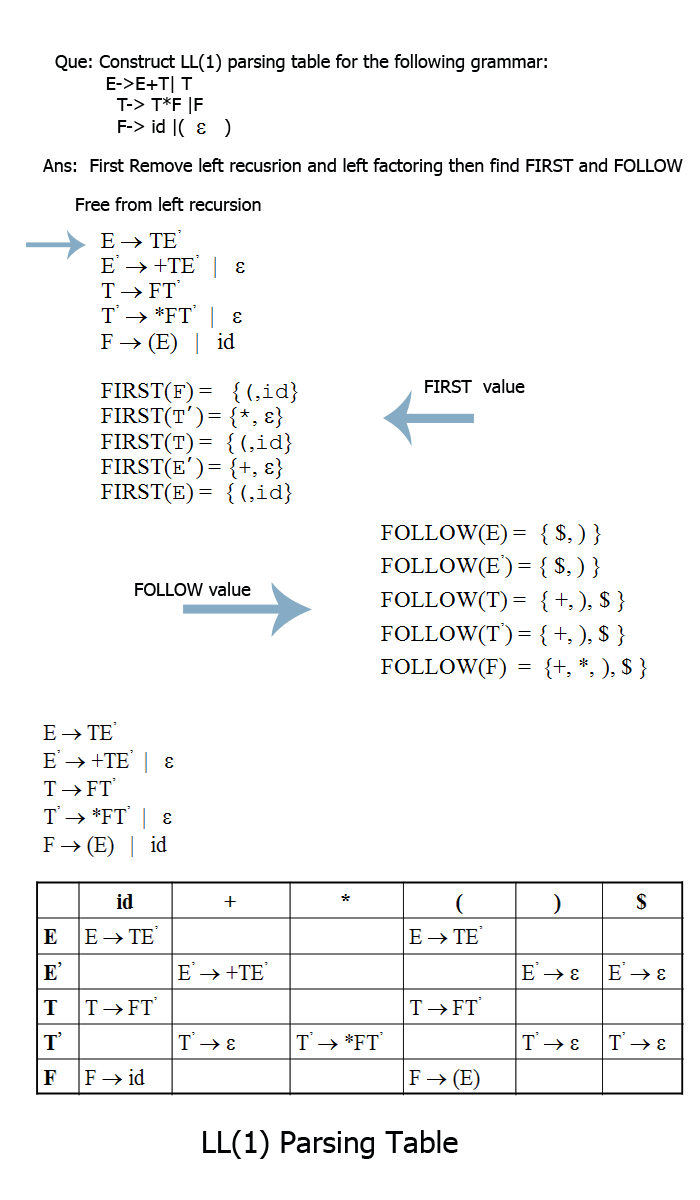

Let see the live example of LL(1) parsing table
We have put all the correct values on the right place.
